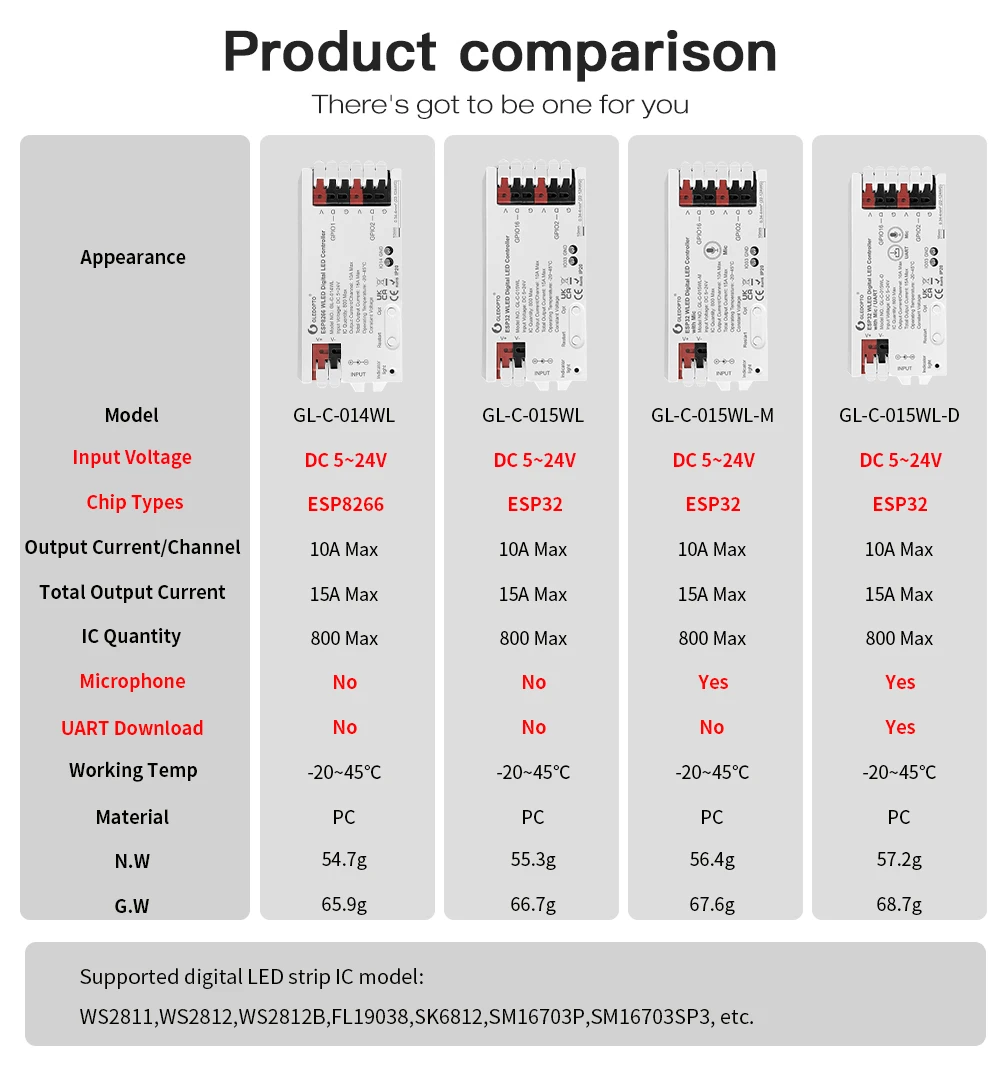

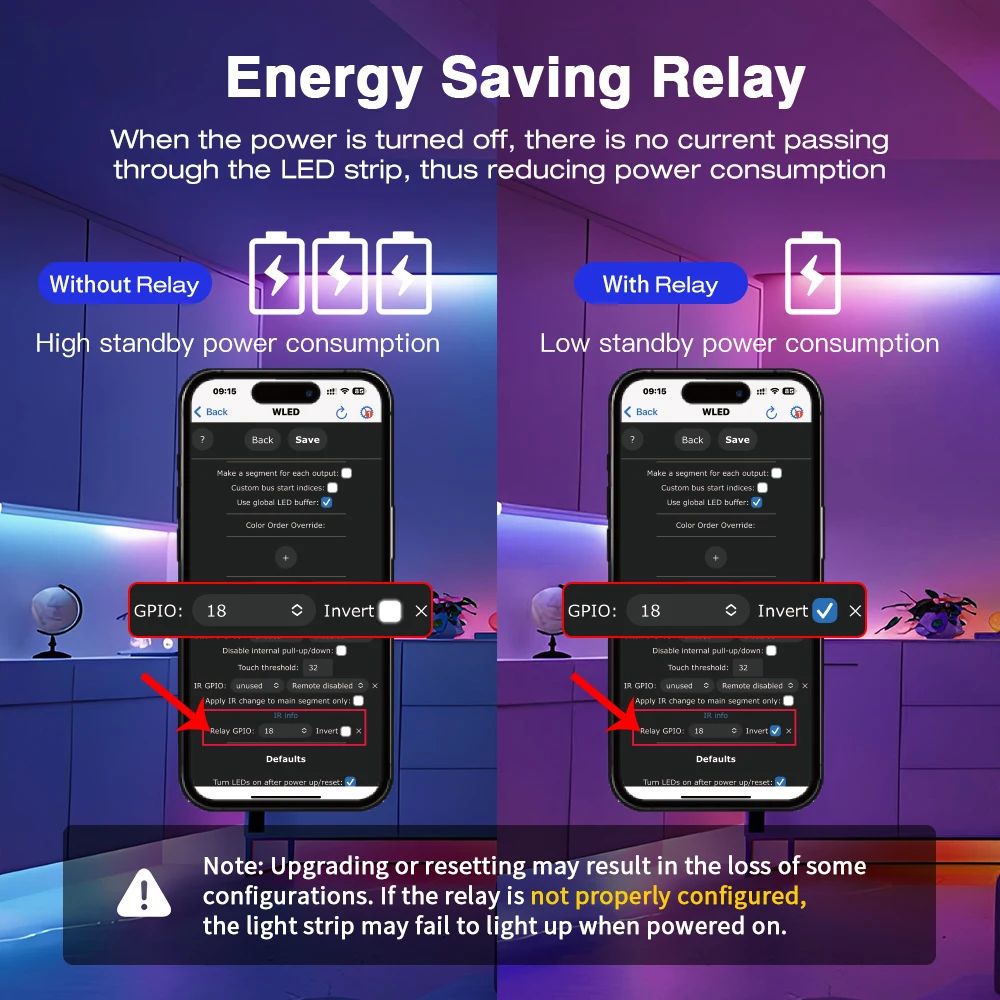

Note: WLED controller supports OTA upgrade firmware. Please select the firmware corresponding to the chip when upgrading firmware. Wrong firmware upgrade will lead to product brick Note: For DC port connections, do not exceed 3A, otherwise the controller may be damaged Note: Please note that there are Several controllers available for this link, please carefully select the controller you need. ●ESP8266 White：GL-C-014WL White (No Mic and UART) ●ESP8266 Black：GL-C-014WL Black (No Mic and UART) ●ESP32 White: GL-C-015WL White (No Mic and UART) ●ESP32 Black: GL-C-015WL Black (No Mic and UART) ●ESP32 Mic White: GL-C-015WL-M White (No UART) ●ESP32 Mic Black: GL-C-015WL-M Black (No UART) ●ESP32 Mic UART White: GL-C-015WL-D White ●ESP32 Mic UART Black: GL-C-015WL-D Black Wireless control and no need for a gateway:   Through the dedicated wled app, users can directly control the lights on their smartphones without additional gateway devices, simplifying the installation and usage process. Low Power Consumption:   On-board switching regulator powering the ESP8266 / ESP32. Efficient idle operation with a built-in MOSFET relay to disable output power when WLED is off. Simple wiring and expandability:   The controller is designed with simple wiring ports, making it easy for users to quickly connect. Rich dynamic modes and compatibility:   Offering over 100 dynamic modes, users can easily create personalized lighting effects. At the same time, the controller is compatible with a variety of addressable LED strips, such as ws2811, ws2812, ws2813, sk6812, etc., increasing its range of application. Q&A or more info, please contact us on line, and we will answer you in time. Product Name:WLED Strip Light Controller Model No.:GL-C-014WL / GL-C-015WL / GL-C-015WL-M / GL-C-015WL-D Voltage: DC 5-24V IC Quantity: 800 Max Output Current/Channel: 10A Max Total Current: 15A Max Size: 108*45*18mm Operating Temperature:-20-45°C Supported Strip: WS2811, SK6812, SM16703P, WS2812, etc 1pcs* WLED Strip Controller 1pcs* User Manual 1pcs* 3cm Stricker
